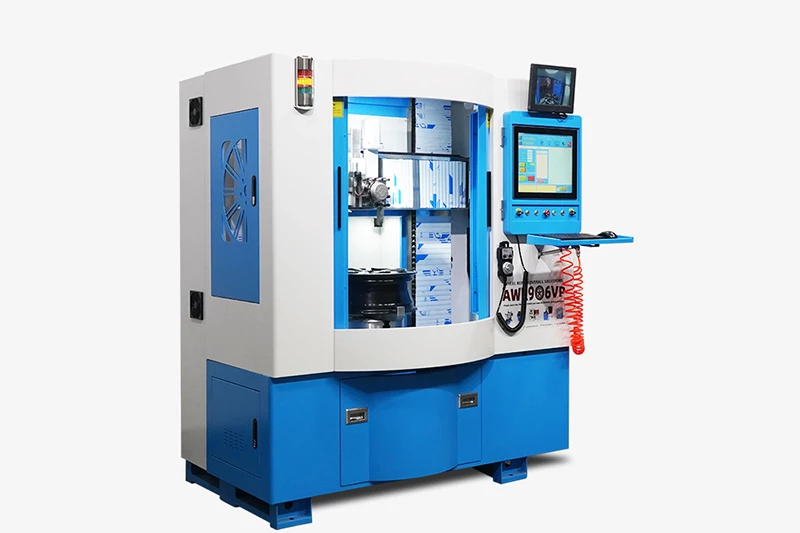

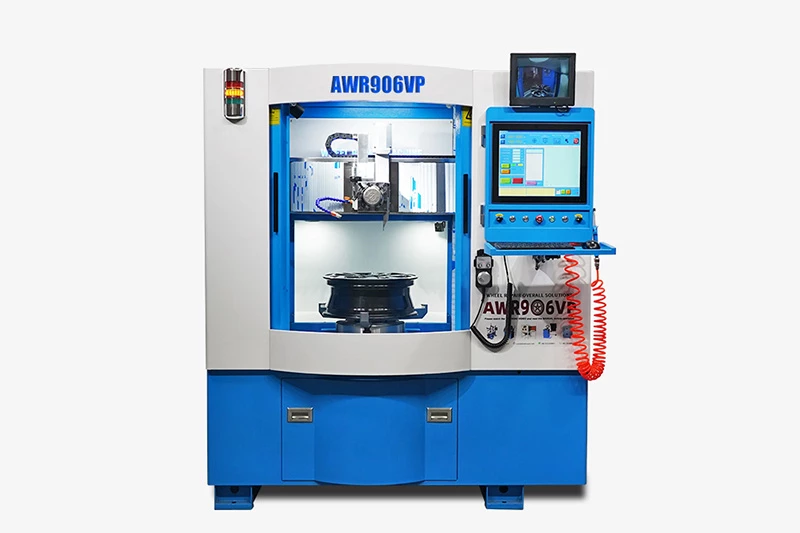

AWR906VP Wheel CNC Machine
The AWR906VP features a vertical design with a durable cast iron body, six linear guide-rails, and a robust gantry structure, ensuring exceptional stability and superior cutting performance. It supports a maximum cutting size of up to 35 inches , making it versatile for various applications. Designed with user-friendly functions and efficient repetitive cutting capabilities, this machine simplifies operation, reduces labor costs, and saves time. Despite its powerful performance, it occupies just 1.68m² of floor space, making it a compact yet highly efficient solution. The AWR906VP is our top recommendation for precision cutting needs.
TECHNICAL PARAMETERS
| Control system | Multi-touch industrial PC system |
|---|---|
| Max. wheel cutting size (inch) | 35 |
| Max. depth of wheels(mm) | 590 |
| Chuck type | 13’’ chuck with 3 extended jaw (6 jaw optional) |
| X/Z axis accuracy (mm) | 0.001 |
| X/Z axis control mode | Servo control |
| No. &type of guide in X/Z axis | 2/4 linear guide-rails |
| Range of spindle speed (rpm) | 50-1500 |
| Tool post | 4 position automatic tool holder |
| Detection method | Ruby probe (Laser detection optional) |
| Machine base | Whole cast iron base |
| Machine motors power (kw) | 9.02 |
| Voltage | 3phase 380V (Other voltage optional) |
| Color | Customizable |
| Machine/Packing size (mm) | 1650*1020*1960/ 1810*1230*2200 |
| Net weight (kg) | 1350 |
