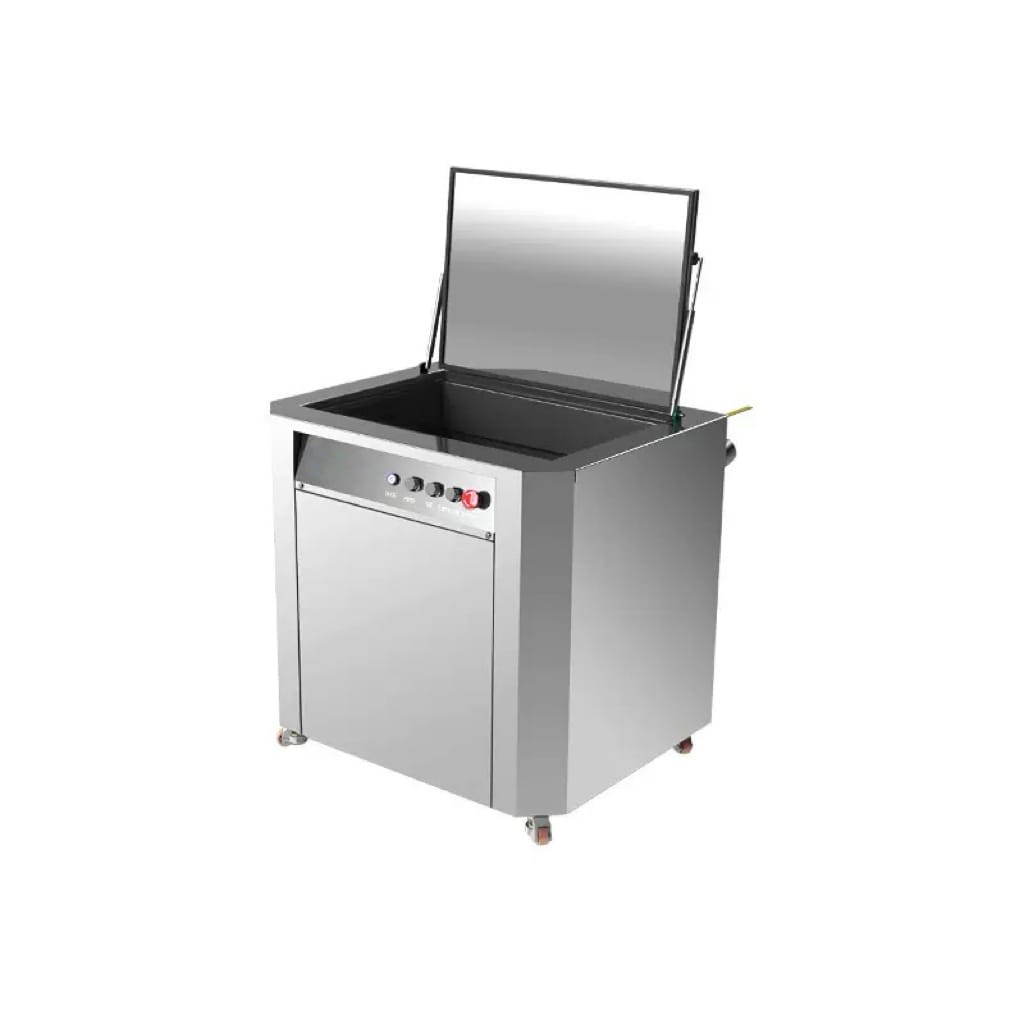

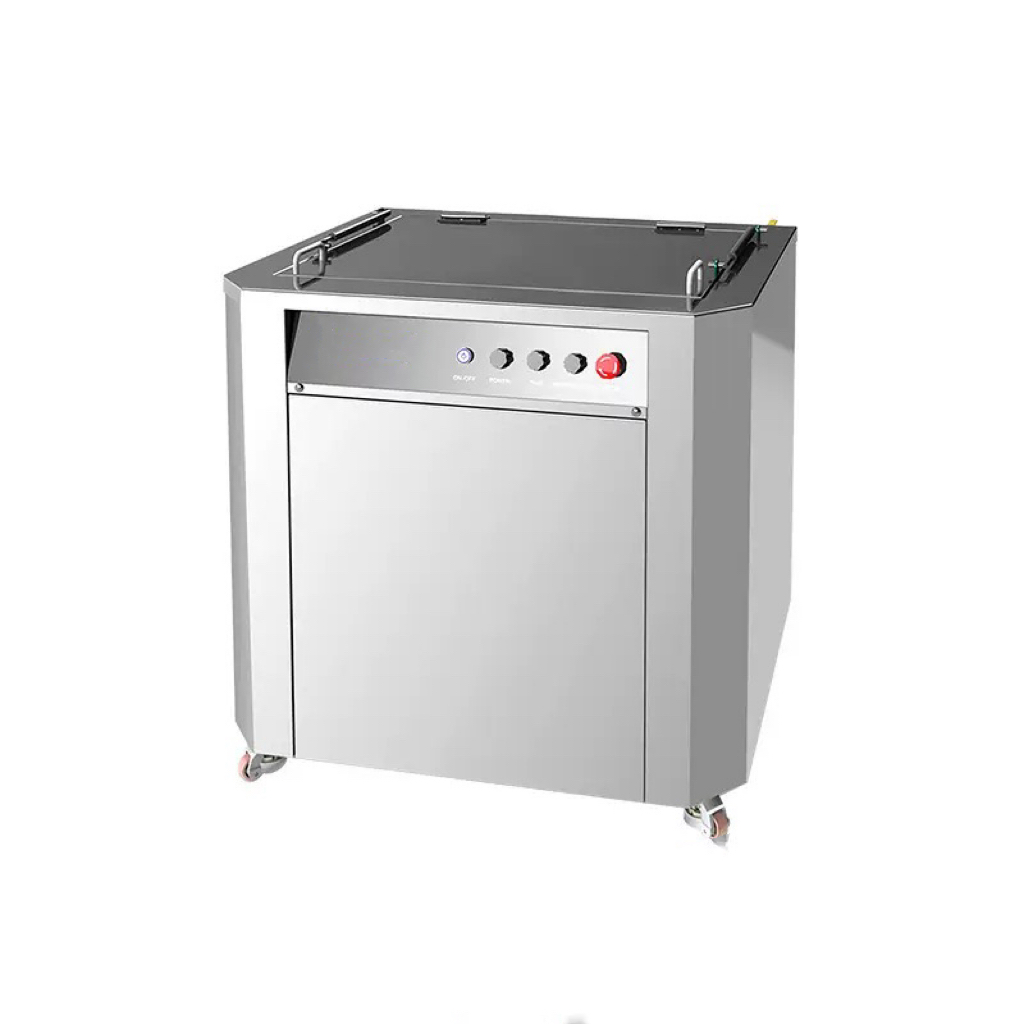

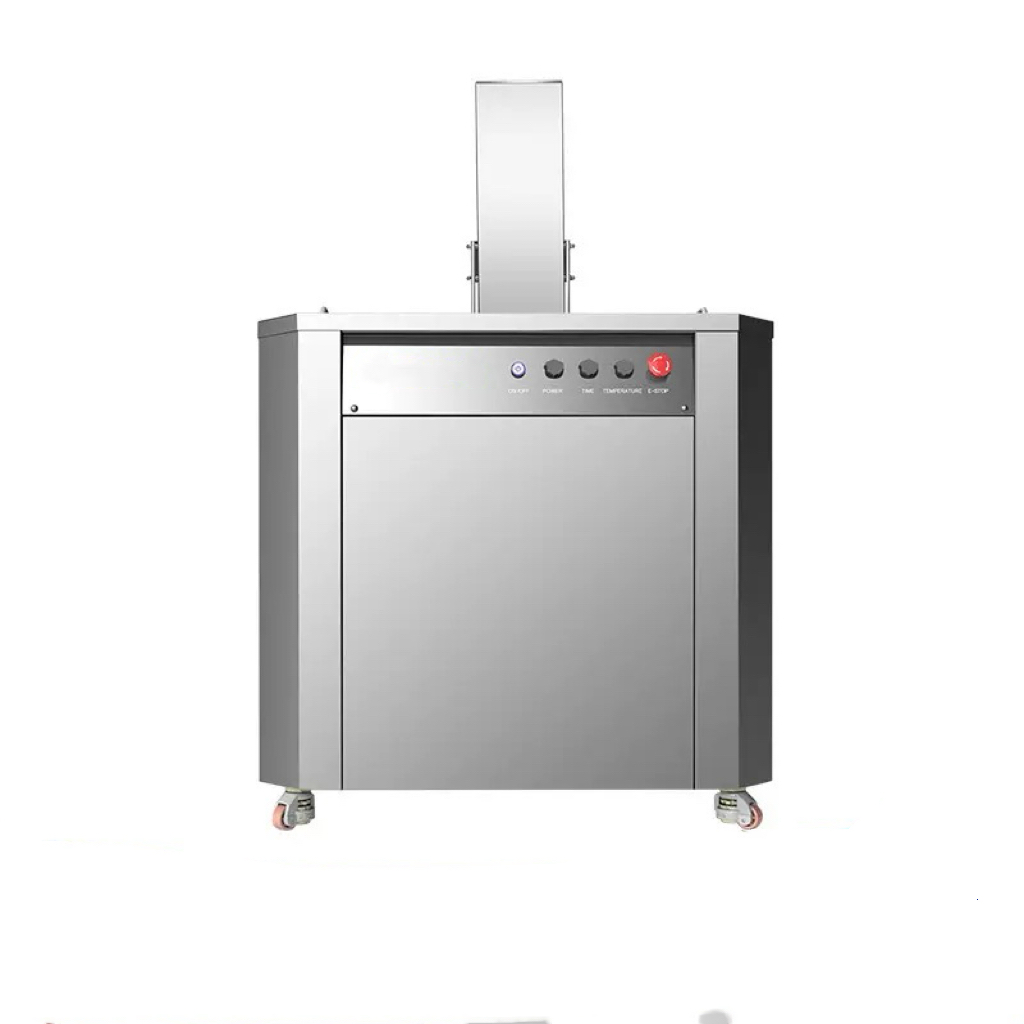

Industrial Professional Ultrasonic Cleaner Series
Industrial professional ultrasonic cleaners represent an intelligent, all-in-one cleaning solution meticulously designed for swift and efficient component cleaning. with a user-friendly setup that requires simply plugging in and adding water, these advanced systems eliminate the need for complex installations. Versatile in application, they cater to a broad spectrum of parts made from metal, plastic, and ceramic materials, facilitating rewashing, intermediate cleaning, or final rinse processes. Furthermore, they offer corrosion protection capabilities, effectively eliminating contaminants such as oil, grease, debris, mud, and production residues from part surfaces.
Features
- Simply plug in the device, add water, and operators can commence cleaning immediately, with no additional installation procedures required.
- Cleaning duration and temperature settings can be effortlessly adjusted.
- Ultrasonic transducers are housed within easily replaceable transducer packs, facilitating straightforward replacement upon the end of their lifespan.
- A circulation and filtration system is available as a modular option.
- Lifting and agitation functions are also optional features that can be incorporated.
Technical Data
Ultrasonic Frequency available: 20/28/40KHZ, Single
Model | Effective Tank Size (mm) | Overall Dimensions (mm) | Effective Liquid Level (mm) | Effective Tank Capacity (L) | Ultrasonic Power (KW) | Heating Power (KW) | Overflow Function | Ultrasonic Direction |
---|---|---|---|---|---|---|---|---|
KT-900E | 380x270x350 | 520x410x600 | 350 | 36 | 0.9 | 2 | X | Bottom |
KT-1200E | 500x350x350 | 640x490x600 | 350 | 61 | 1.2 | 3 | X | Bottom |
KT-1500E | 600x400x400 | 740x540x600 | 400 | 96 | 1.5 | 4 | X | Bottom |
KT-1800E | 650x450x400 | 790x590x600 | 400 | 117 | 1.8 | 4 | X | Bottom |
KT-2400E | 700x480x400 | 840x620x600 | 400 | 134 | 2.4 | 5 | √ | Bottom |
KT-2800E | 800x500x450 | 940x640x650 | 450 | 180 | 2.8 | 6 | √ | Bottom |
KT-3600E | 1000x550x450 | 1140x690x650 | 450 | 247 | 3.6 | 8 | √ | Bottom |
KT-2400 | 600x480x450 | 760x770x680 | 390 | 130 | 2.4 | 4 | √ | Three Sides |
KT-3000 | 750x550x480 | 910x850x770 | 390 | 198 | 3 | 8 | √ | Three Sides |
KT-4000 | 1000x550x560 | 1160x850x870 | 420 | 308 | 4 | 12 | √ | Three Sides |
KT-6000 | 1200x650x650 | 1400x1030x980 | 490 | 507 | 6 | 15 | √ | Three Sides |
KT-8000 | 1450x720x730 | 1650x1190x1100 | 570 | 762 | 8 | 18 | √ | Three Sides |
KT-10800 | 1500x800x800 | 1700x1280x1150 | 640 | 960 | 10.8 | 30 | √ | Three Sides |
KT-12000 | 1700x900x800 | 1960x1450x1150 | 640 | 1224 | 12 | 45 or Steam | √ | Three Sides |
KT-24000 | 2500x1200x1000 | 2800x1800x1350 | 840 | 3000 | 24 | 90 or Steam | √ | Three Sides |
