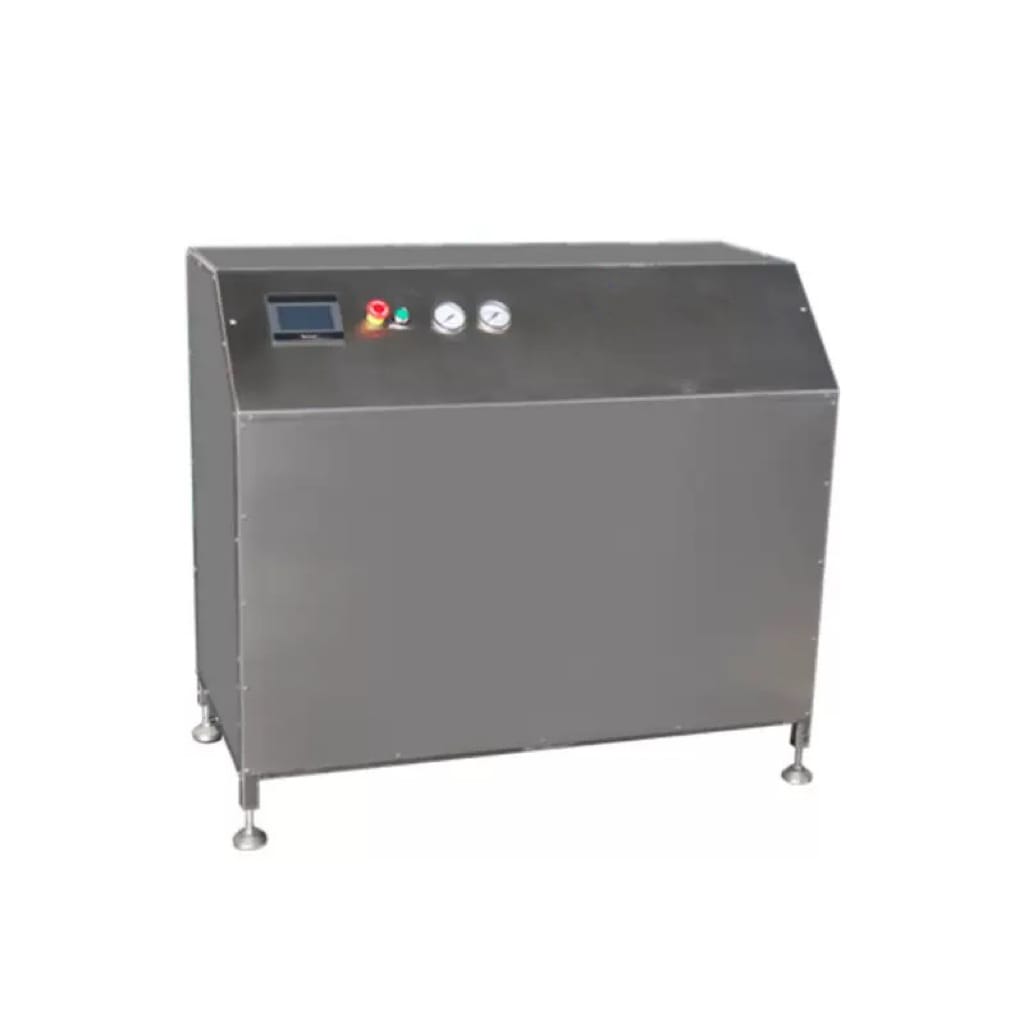

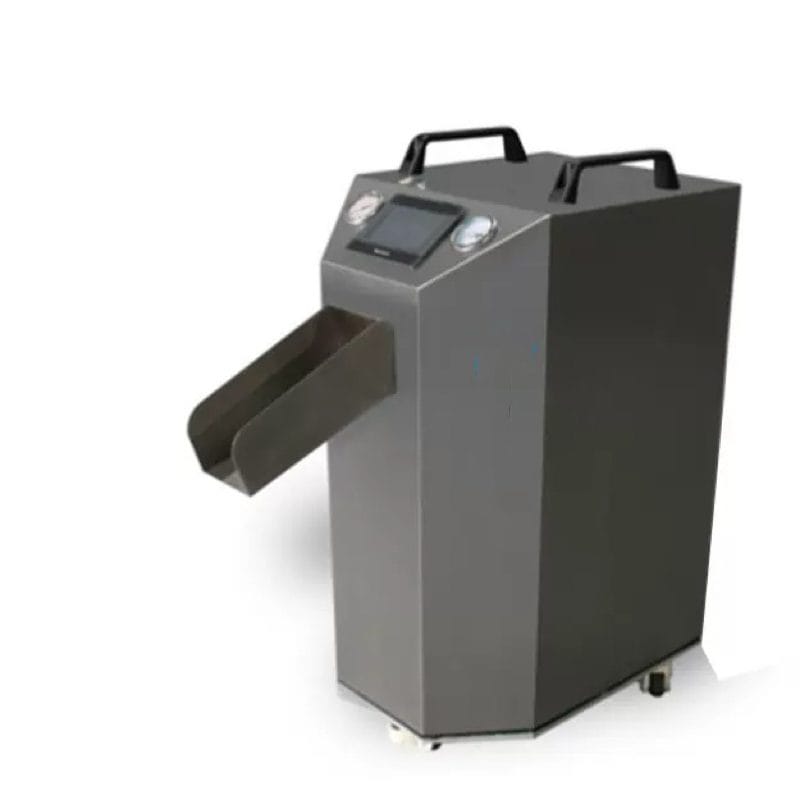

Dry-ice Pellet production Machine ICE-PEL S
ICE-JET S is a compact, full-automatic dry ice pellet production machine designed for small to medium-scale operations. Despite its smaller footprint, it delivers efficient and reliable performance, making it ideal for applications that require consistent yet moderate daily output of dry ice pellets. Its user-friendly design and advanced automation features ensure ease of operation and maintenance, while still producing high-quality dry ice pellets suitable for various industries.
FEATURES
- This machine is designed for versatility, capable of integration with dry ice washing systems or independent operation as a standalone production unit.
- Equipped with a user-friendly PLC control system (excluding Model ICE-PEL 15).
- It excels in producing high-density, high-purity dry ice, thereby optimizing consumption rates and minimizing costs. Notably, it is also capable of manufacturing food-grade dry ice pellets.
- Flexibility is at the core of its design, enabling the production of dry ice particles in various sizes through simple mold swaps, catering to diverse industry needs.
- Encased in premium stainless-steel panels, the machine boasts a sleek aesthetic while offering durability and ease of maintenance with its accessible frame design.
- Reliability is guaranteed by the integration of globally recognized brand components, ensuring uninterrupted operation round the clock.
- With its space-efficient structure and portability, this machine is the optimal choice for small to medium-scale workshops.
TECHNICAL PARAMETERS
| Model | ICE-PEL S15 | ICE-PEL S20 | ICE-PEL S30 | ICE-PEL S60 |
|---|---|---|---|---|
| Dry Ice Output (KG/H) | 10-15 | 15-20 | 25-30 | 50-60 |
| CO2 Conversion Rate (%) | 35-45 | 35-45 | 35-45 | 35-45 |
| Hydraulic Oil (HM) | 64 | 64 | 64 | 64 |
| Oil Tank Capacity (L) | 50 | 50 | 80 | 80 |
| Motor Power (KW) | 1.5 | 1.5 | 2.5 | 4 |
| Inlet Pressure (Bar) | 16-20 | 16-20 | 16-20 | 16-20 |
| Dimensions (MM) | 470x820x350 | 470x820x350 | 1100x430x660 | 1100x650x660 |
| Weight (KG) | 113 | 116 | 180 | 260 |
