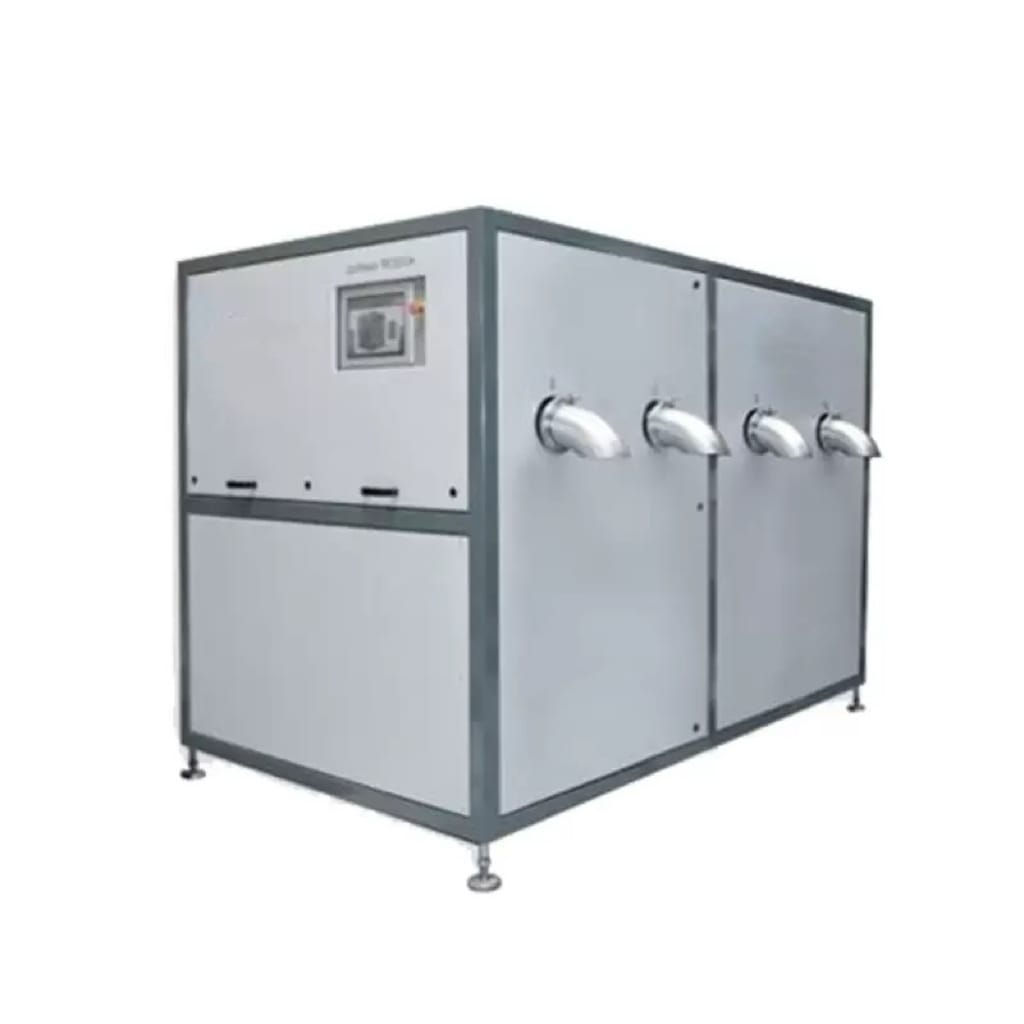

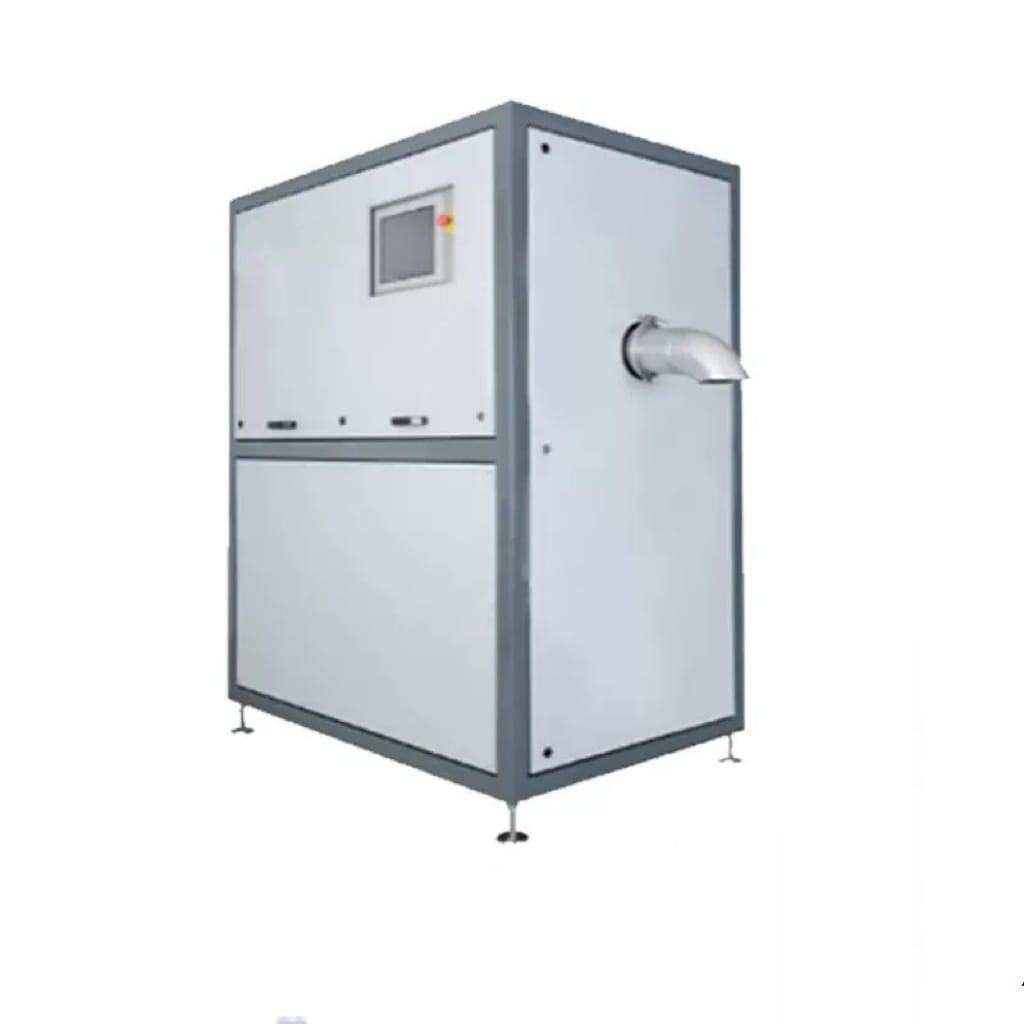

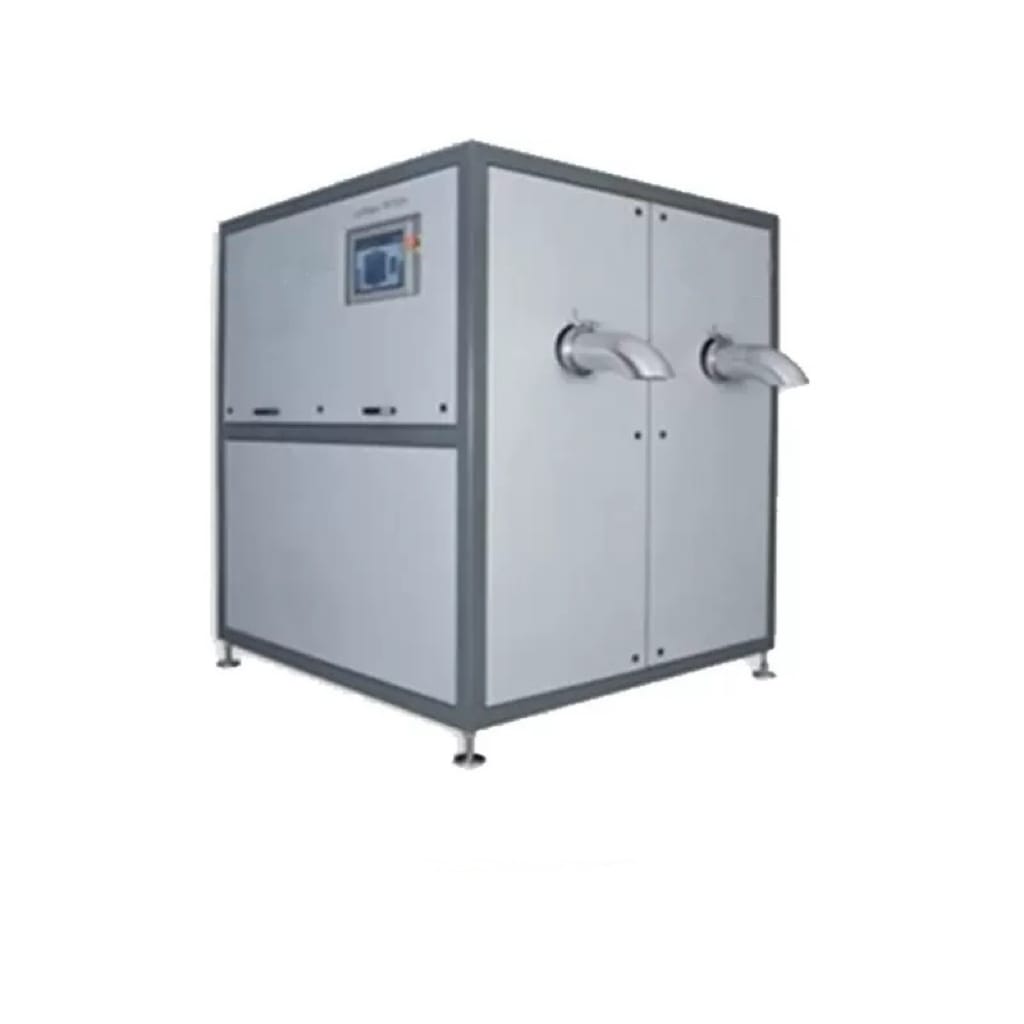

Dry-ice Pellet production Machine ICE-PEL
ICE-JET is a fully automatic dry ice pellet production machine designed to meet high daily demands for dry ice. Its efficient output ensures reliable performance, making it ideal for operations that require large quantities of dry ice on a regular basis.
FEATURES
- This machine is designed for versatility, capable of integration with dry ice washing systems or independent operation as a standalone production unit.
- Equipped with a user-friendly PLC control system.
- It excels in producing high-density, high-purity dry ice, thereby optimizing consumption rates and minimizing costs. Notably, it is also capable of manufacturing food-grade dry ice pellets.
- Flexibility is at the core of its design, enabling the production of dry ice particles in various sizes through simple mold swaps, catering to diverse industry needs.
- Encased in premium stainless-steel panels, the machine boasts a sleek aesthetic while offering durability and ease of maintenance with its accessible frame design.
- Reliability is guaranteed by the integration of globally recognized brand components, ensuring uninterrupted operation round the clock.
- With its space-efficient structure and portability, this machine is the optimal choice for small to medium-scale workshops.
TECHNICAL PARAMETERS
| Model | ICE-JET 3.0 | ICE-JET 6.0 | ICE-JET 15 | ICE-JET 40 |
|---|---|---|---|---|
| Dry Ice Capacity | 3KG | 6KG | 15KG | 40KG |
| Dry Ice Consumption | 20-50KG/H | 20-50KG/H | 30-100KG/H | 30-100KG/H |
| Supply Pressure | 3-10bar | 3-10bar | 3-10bar | 3-10bar |
| Air Consumption | 1-2m3/min | 1-3m3/min | 1-4m3/min | 1-5m3/min |
| Weight | 40KG | 50KG | 65KG | 80KG |
| Dimensions | 460×340×750mm | 460×350×850mm | 550x445x985mm | 650x550x1000mm |
| Total Power | <500W | <800W | <800W | <800W |
